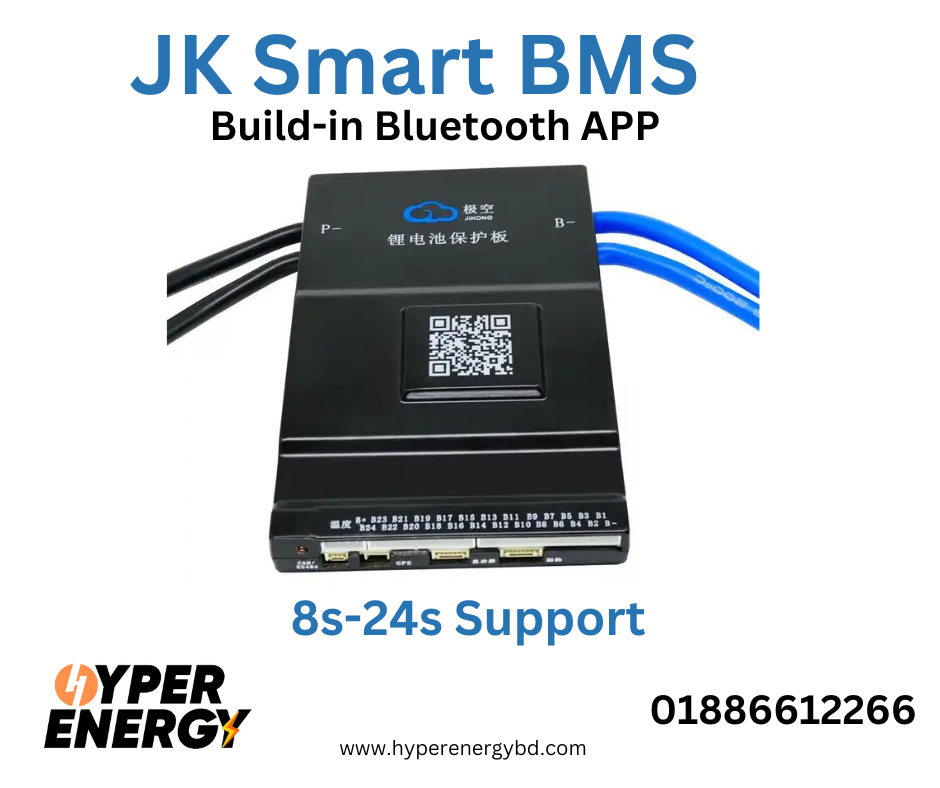

JK 8S-24S Active Balance Battery Protection Board Smart Bluetooth BMS 8S 10S 12S 13S 14S 15S 16S 20S 24S RS485 APP Lifepo4 li-ion LTO 24V 36V 48V 60V 72V 84V
8S-17S 40A Continuous current 0.4A Active Balance
8S-17S 60A Continuous current 0.6A Active Balance
8S-20S 60A Continuous current 0.6A Active Balance
8S-24S 60A Continuous current 0.6A Active Balance
8S-17S 80A Continuous current 0.6A Active Balance
8S-20S 80A Continuous current 0.6A Active Balance
8S-24S 80A Continuous current 0.6A Active Balance
SIZE ; SIZE : 115X78X17.6MM
can use for li-ion Lipo Lifepo4 and son
have English APP and documents ~
it have protection board , have charge/discharge protection , overcharge/overdischarge protection ,overcurrent protection , temperature protection , under-voltage protection , drop cell protection , short circuit protection and so on …. it’s balance is active
BMS support CAN communication
Active measurement the highest voltage, the lowest voltage, the average voltage, and take the highest voltage cell and the lowest voltage cell to balance
RS485 module /LCD display don’t include in BMS , if you need them , need to buy seperateply ~
Features
Bidirectional lossless active equalization function, improve battery efficiency by 95%.
Can be used for ion lithium, li-ion , lipo ,lifepo4 , LTO , lithium cobaltate, lithium manganate battery pack
With overcharge, overdischarge, overcurrent, short circuit and other protection functions
Single battery acquisition range 1V-5V, accuracy ±5MV
Bluetooth communication as standard; reserved GPS/RS485/CAN communication interface
Operating temperature range: -20°C-70°°C
Power requirements: 24V-100V
Power consumption: balanced state 10MA@100V, unbalanced state 6MA@100V
Support Android, IOS English
