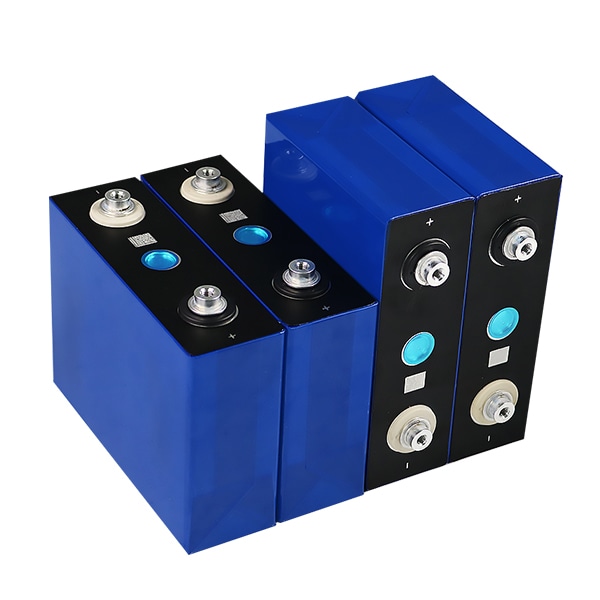

The Eve 102Ah LiFePO4 battery is a high-performance, rechargeable prismatic lithium iron phosphate (LiFePO4) cell designed for a variety of demanding applications. It is widely used for building battery packs for solar energy storage systems, electric vehicles (EVs), RVs, and marine applications due to its long cycle life, high safety, and stable performance.
The cell’s prismatic aluminum shell provides a durable and compact form factor. It is known for its high energy density and low self-discharge rate.
Specifications:
* Model: LF100LA
* Chemistry: Lithium Iron Phosphate (LiFePO_4)
* Nominal Capacity: 102 Ah
* Nominal Voltage: 3.2 V
* Nominal Energy: 320 Wh
* Maximum Charge Voltage: 3.65 V
* Minimum Discharge Voltage: 2.5 V
* Standard Charge/Discharge Current: 0.5C (52.5 A)
* Maximum Continuous Discharge Current: 1C (102 A)
* Pulse Discharge Current: Up to 3C (315 A) for 30 seconds
* AC Impedance Resistance: ≤0.5 mΩ
* Cycle Life: ≥5000 cycles (at 80% Depth of Discharge, 0.5C charge/discharge at 25°C)
* Dimensions (W x T x H): 130.3 mm x 36.7 mm x 200.5 mm
* Weight: Approximately 1.98 kg
* Operating Temperature (Discharge): -20°C to 55°C
* Operating Temperature (Charge): 0°C to 55°C
* Terminal Type: M4 or
M6 screw terminals
